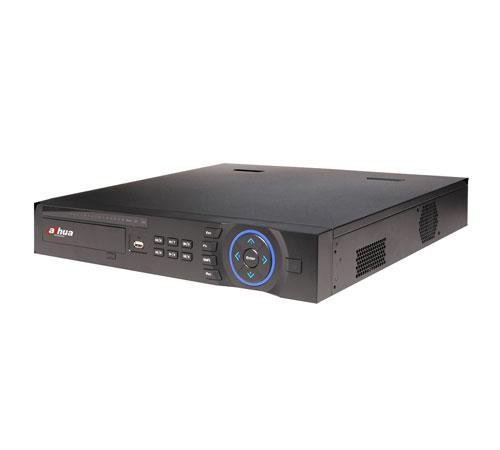

دستگاه دی وی آر داهوا مدل DVR5416

– نوع دوربین: DVR داهوا
– Main Processor : Embedded processor
– Operating System : Embedded LINUX
– Video Input : 16 channel, BNC
– Video Standard : NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
– Audio Input : 4 channel, BNC
– Audio Output : 1 channel, BNC
– Audio Two-way Talk : 1 channel Input, 1 channel Output(Reuse the audio output channel), BNC
– Interface : 1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC
– رزولوشن : 1920×1080, 1280×1024, 1280×720, 1024×768
– Display Split : 1/4/8/9/16
– Privacy Masking : 4 rectangular zones (each دوربین مداربسته)
– OSD : دوربین مداربسته title, Time, Video loss, دوربین مداربسته lock, Motion detection, Recording
– Video/فشرده سازی صدا : H.264/G.711
– Image رزولوشن : 960H(960×576/960×480) / D1 / 4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF(704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120)
– Record Rate : Main Stream : 960H / D1 / HD1 / 2CIF / CIF(1~25/30fps)
– Extra Stream : QCIF(1~25/30fps) / CIF(1~6/7fps)
– بیت ریت : 48~3072Kb/s
– Record Mode : دستی, Schedule(Regular(Continuous), MD, Alarm), Stop
– Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
– Trigger Events : Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
– Video Detection : Motion Detection, MD Zones: 396(22×18), Video Loss & دوربین مداربسته Blank
– Alarm Input : 16 channel
– Relay Output : 3 channel
– Sync Playback : 1/4 : 1/4/9 : 1/4/9/16
– Search Mode : Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
– Playback Functions : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next دوربین مداربسته, Previous دوربین مداربسته, Full screen, Repeat, Shuffle, Backup selection, زوم دیجیتال
– Backup Mode : USB Device / شبکه / داخلی SATA burner / eSATA Device
– کابل شبکه : RJ-45 port (10/100M/1000M)
– شبکه Functions : HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, SNMP, P2P
– Max. User Access : 128 users
– Smart Phone : iPhone, iPad, Android, Windows Phone
– داخلی HDD : 4 SATA ports(4HDDs or 3HDDs+1CD/DVD-RW), تا 16TB
– External HDD : 1 eSATA port, تا 4TB
– رابط یو اس بی : 2 ports (1 Rear), USB2.0
– RS232 : 1 port, For PC co میلی مترunication & Keyboard
– RS485 : 1 port, For PTZ control
– توان ورودی : AC100~240V, 50/60Hz
– توان مصرفی : 25W : 30W : 40W
– Working Environment : -10°C ~+55°C/10%~90%RH / 86~106kpa
– اندازه(W×D×H) : 1.5U, 440 میلی متر×416 میلی متر×68 میلی متر
– وزن : 6.0KG(without HDD)
